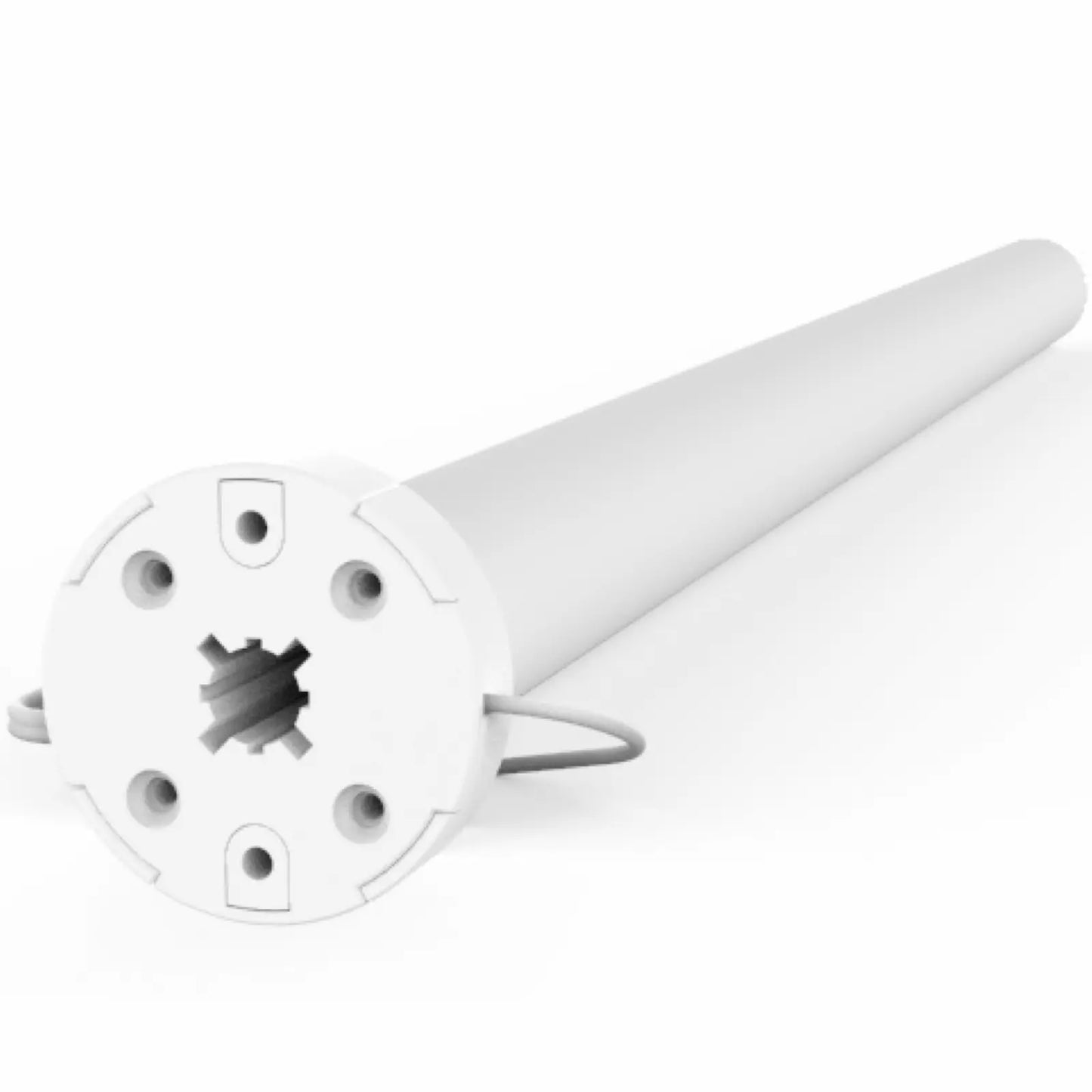

Rollease Automate WireFree Li-ion 1.1 Roller Shade Motor
Rollease Automate WireFree Li-ion 1.1 Roller Shade Motor
Couldn't load pickup availability
THIS PART HAS BEEN DISCONTINUED AND REPLACED WITH PART: MT01-1325-069002
Rechargeable. Battery-powered. Efficient installation.
This wire-free motor’s built-in rechargeable lithium-ion battery is perfect for small to medium shade applications.
BI-DIRECTIONAL COMMUNICATION
Automate Radio Communication utilizes two-way communication
to provide up-to-date feedback on battery levels and shade positioning via the Automate Pulse 2 app.
SIMPLIFIED SETUP
Whether using a remote control or app for shade setup, Automate programming instructions are streamlined to have your shades moving as quickly as possible.
PRECISE LIMIT ADJUSTMENT
Incremental steps during limit setting allows for precise positioning of the shade.
ADJUSTABLE SPEED CONTROL
Three shade speed settings to suit your needs – faster for larger shades, slower for smaller. Features quiet operation when set to the lowest speed setting.
FAVORITE POSITIONING
Add a programmable shade position in addition to the upper and lower limits that can be defined as your “favorite”.
Part #: MTDCBRF25-1.1
Automate WireFree Li-ion 1.1
|
Voltage |
12 |
Limit Switch Type |
Electronic |
|
Torque |
1.1Nm |
Current |
0.87A |
|
Max Run Time |
10 Min |
Battery Size/Type |
2200mAH |
|
Speed |
40 RPM (Adjustable to 30 or 20) |
Temp Working Range |
32°F to 140°F (0°C to 60°C) |
|
Radio Frequency |
433.92 MHz |
Insulation Class |
III |
|
RF Modulation |
FSK |
Sound Level |
~46 dB |
|
IP Rating |
IP44 |
